Highest speeds and precise positioning accuracy
Maximum flexibility
Ease of use for operators
Automated production increases efficiency and quality
SRS Glazing Robot / Bonding Robots
The Advantages

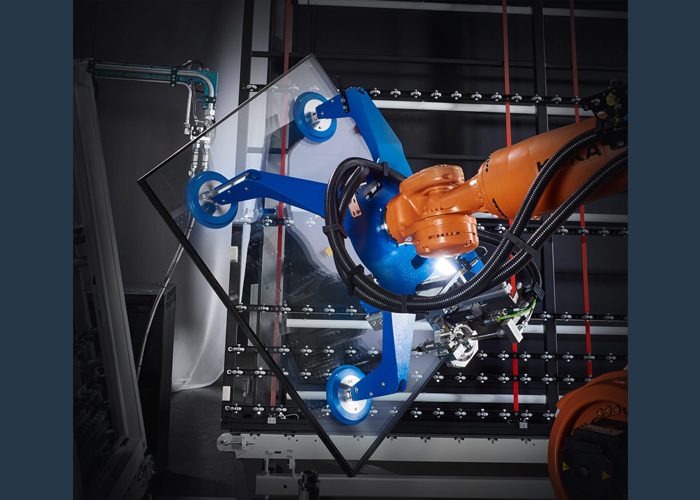

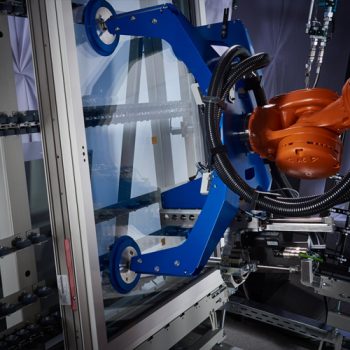

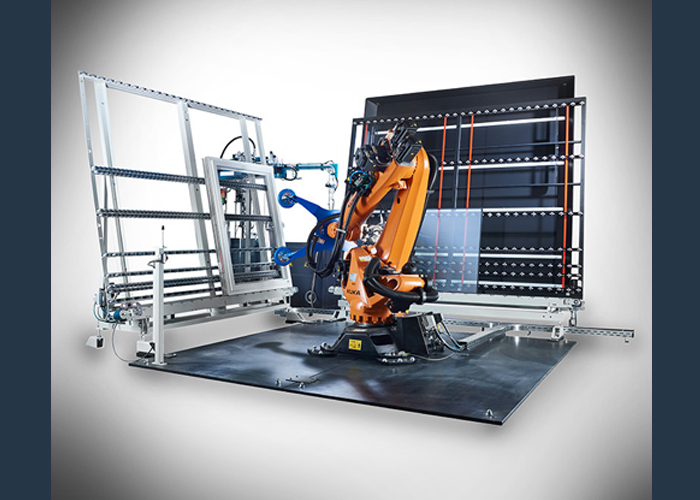

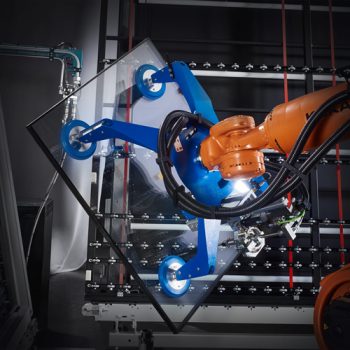

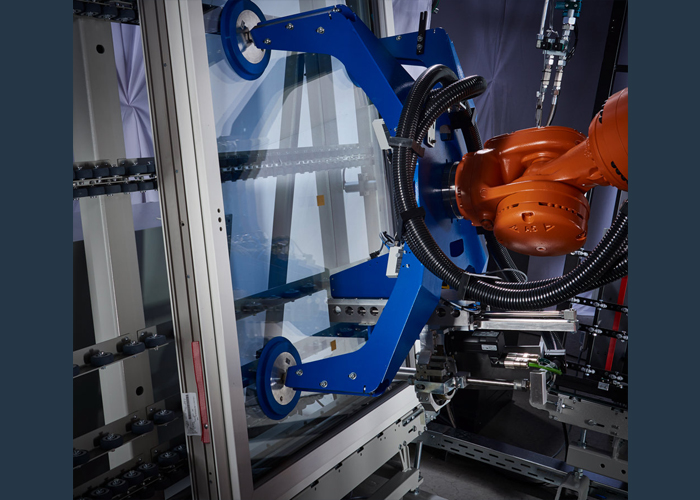

- 6-axis industrial robot for automatic glazing of insulating glass panes

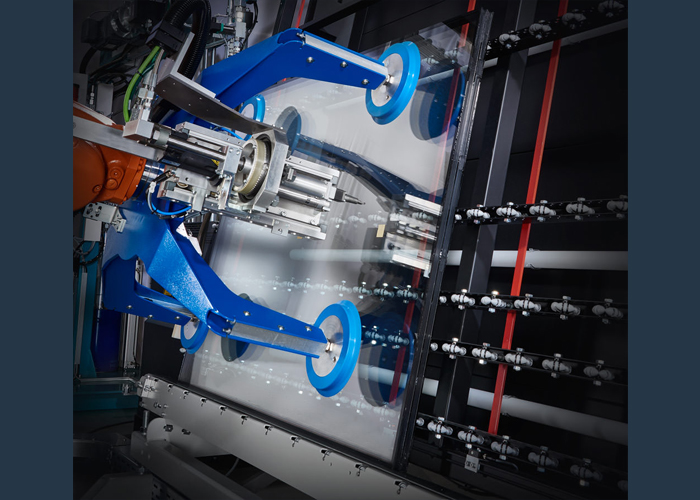

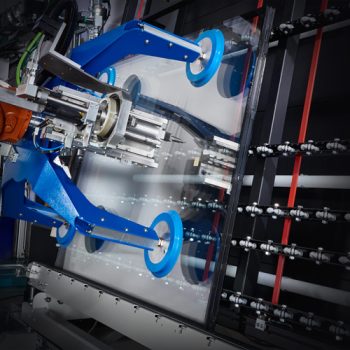

- Multi-vacuum gripper incl. process monitoring
- Integration and connection to all common window construction software systems via the
- Stürtz database system

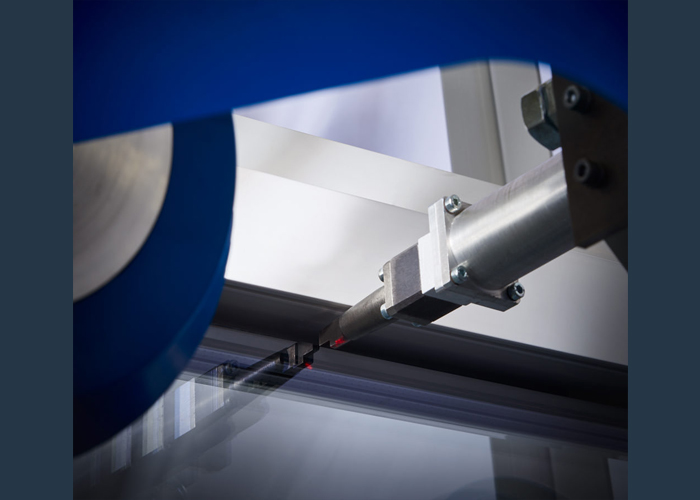

- Automatic control of the glass position

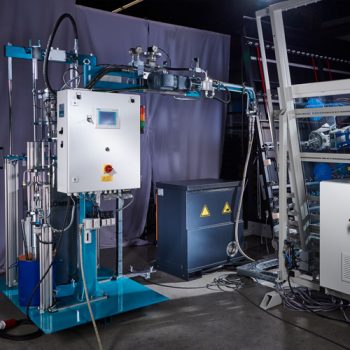

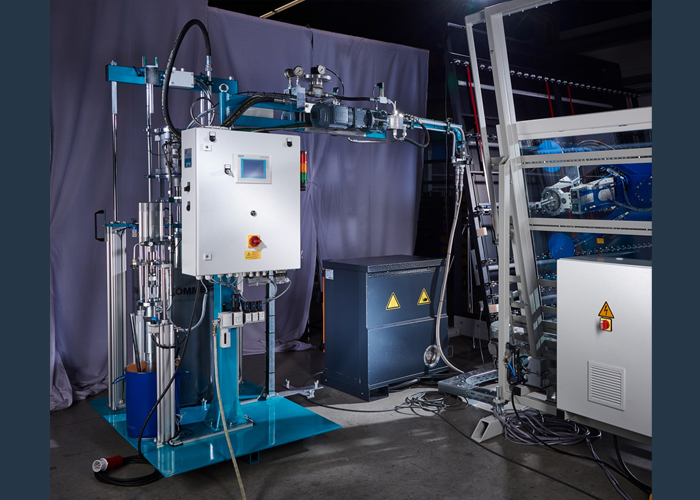

- Optional bonding, using one- and two-component adhesives
- Optional verification of the window opening
- Positioning of the components, using a clamping system
The Advantages
- 6-axis industrial robot for automatic glazing of insulating glass panes
- Multi-vacuum gripper incl. process monitoring
- Integration and connection to all common window construction software systems via the
- Stürtz database system
- Automatic control of the glass position
- Optional bonding, using one- and two-component adhesives
- Optional verification of the window opening
- Positioning of the components, using a clamping system
Technical Data
Component size min
| 330×320 mm (W × H) |
Component size max |
3.000 × 4.000 mm (W × H)* |
Window pane dimension min |
250 x 250 mm |
Window pane dimension max |
2.500 x 2.500 mm |
Window pane weight max |
220 Kg (heavier weight optional) |
|
