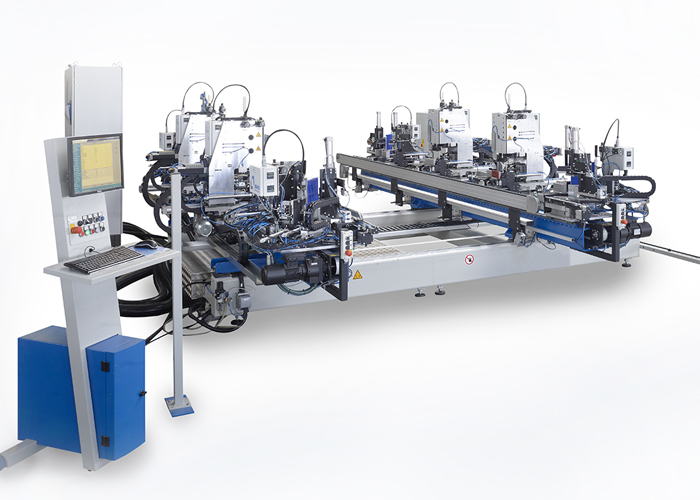

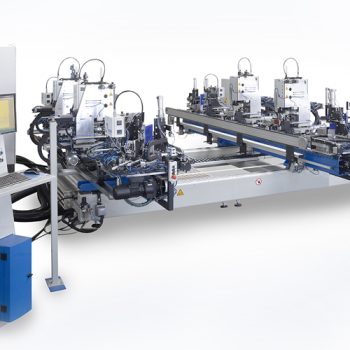

HSM-8K-V


The Advantages

  • V-welding process
  • With 4 angle and 4 transom welding heads
  • On-screen dialogue system under Windows
  • Diagonal or parallel joining method on the angle welding heads
  • Data management via database
  • Heated weld bead limiter (optional)
  • Welding parameters individually programmable
  • Welding bead limit 2mm (0.2 to 1 mm optional)
  • Welding of 2 elements in parallel possible
  • Steel insertion into the transom weld possible during the welding process
  • Discharge device in running direction or laterally
  • Integration into a welding-plastering line possible
  • Sash glass seal and frame stop seal (stamping or blade limit only on the outer 4 heads)
  • Front door welding open U or with threshold mounting
  • Overlength welding
  • HFL wooden window look (only on the outer 4 heads)

The Advantages

  • V-welding process
  • With 4 angle and 4 transom welding heads
  • On-screen dialogue system under Windows
  • Diagonal or parallel joining method on the angle welding heads
  • Data management via database
  • Heated weld bead limiter (optional)
  • Welding parameters individually programmable
  • Welding bead limit 2mm (0.2 to 1 mm optional)
  • Welding of 2 elements in parallel possible
  • Steel insertion into the transom weld possible during the welding process
  • Discharge device in running direction or laterally
  • Integration into a welding-plastering line possible
  • Sash glass seal and frame stop seal (stamping or blade limit only on the outer 4 heads)
  • Front door welding open U or with threshold mounting
  • Overlength welding
  • HFL wooden window look (only on the outer 4 heads)

Technical Data

Element size min 1060 x 335 mm, (with machining of 2 transoms up to profile width 85 mm);
* 715 x 335 mm (with machining of 1 transom up to profile width 85 mm);
** 345 x 335 mm without transom machining up to profile width 85 mm)
Element size max max. 3000 x 4000 mm
Profile depth min 45 mm
Profile depth max 120 mm (optional 180 mm)
Profile face width min 25 mm
Profile face width max 130 mm
