Processing of large components in one cycle
Max. output quantity through the use of highly dynamic modules and intelligent control technology
Intuitively operable Informations Management System (Diagnostics, reporting and maintenance tool)
2KP-3D
The Advantages

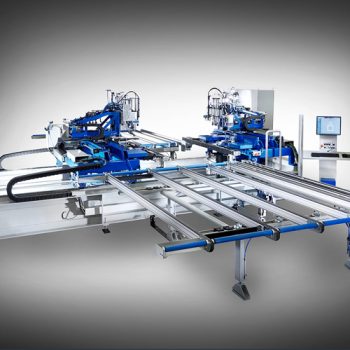

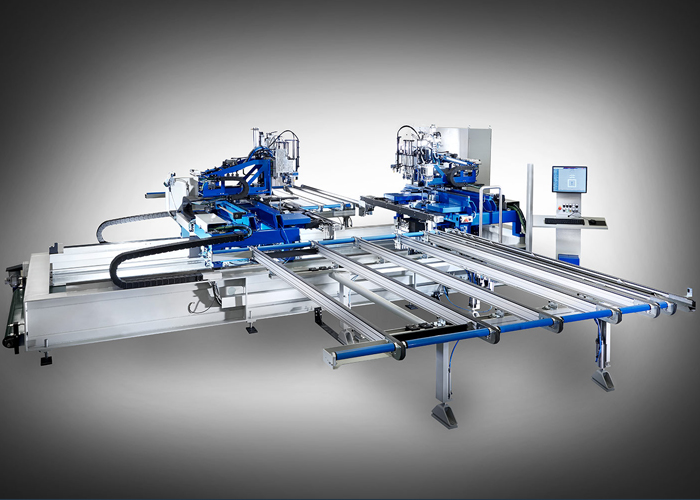

- Two-head plastering machine for parallel processing of two 90° inside and outside corners or two transoms/posts simultaneously
- Highly dynamic drives for short machining cycles
- randomly programmable using a 23 inch touch screen and Windows operating system
- With graphical representation of the profile cross-sections and display of the applicable processing steps
- Highly dynamic modules and intelligent control technology
- Randomly programmable using Windows operating system
- Tools for the machining of the inside with linear guide technology for highest precision
- Processing of pointed and trapezoidal transoms (optional)
- Automatic chip removal (optional)
Standard tooling

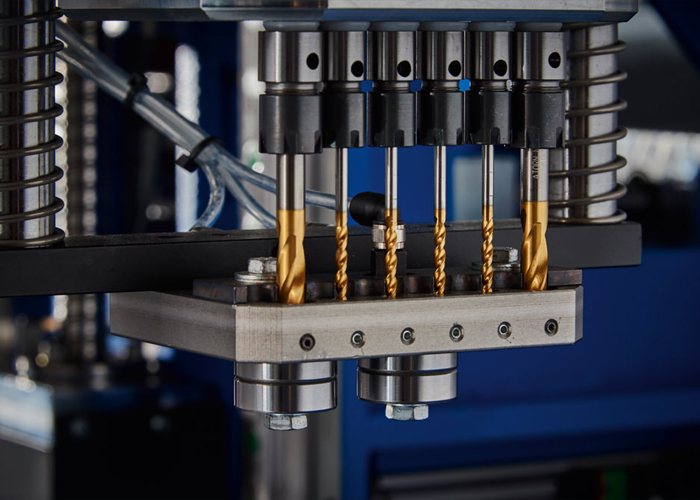

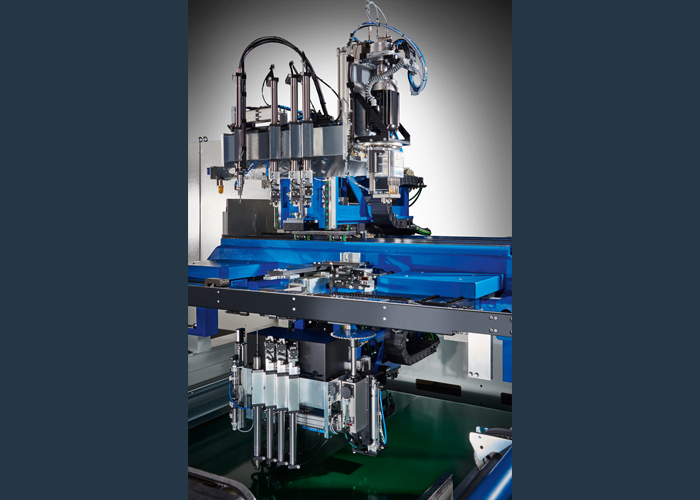

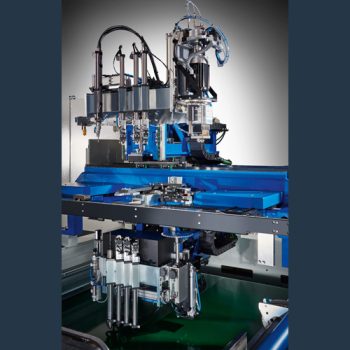

- Upper machining Inner corner and grooving blade (design as V-groove available), 1 bevel unit, drilling motor, exterior contouring sawing disc
- Lower machining: Inner corner and shadow groove blade (design as V-groove available), drill motor
Optional tooling
- Radius machining with KI knife assembly
- Flat cleaning for coloured profiles with FME knife unit possible
- Sliding frame machinable with HIR milling unit
- Disc milling unit SFA
- Pivot post and scissor stay hinge drilling on the frame
- Leaf hinge drilling
- Milling the frame corners (if different frame widths)
- Casement mullion milling
- Additional machining upon request
The Advantages
- Two-head plastering machine for parallel processing of two 90° inside and outside corners or two transoms/posts simultaneously
- Highly dynamic drives for short machining cycles
randomly programmable using a 23 inch touch screen and Windows operating system - With graphical representation of the profile cross-sections and display of the applicable processing steps
- Highly dynamic modules and intelligent control technology
- Randomly programmable using Windows operating system
- Tools for the machining of the inside with linear guide technology for highest precision
- Processing of pointed and trapezoidal transoms (optional)
- Automatic chip removal (optional)
Standard tooling
- Upper machining Inner corner and grooving blade (design as V-groove available), 1 bevel unit, drilling motor, exterior contouring sawing disc
- Lower machining: Inner corner and shadow groove blade (design as V-groove available), drill motor
Optional tooling
- Radius machining with KI knife assembly
- Flat cleaning for coloured profiles with FME knife unit possible
- Sliding frame machinable with HIR milling unit
- Disc milling unit SFA
- Pivot post and scissor stay hinge drilling on the frame
- Leaf hinge drilling
- Milling the frame corners (if different frame widths)
- Casement mullion milling
- Additional machining upon request
Technical Data
Component size
| (clear inside dimension) 190x190 mm (W x H) |
Component size max |
4000 x 4000 mm (W x H) |
Profile depth min |
25mm |
Profile depth max |
max. 135 mm (optional up to 250mm) |
Profile view width min |
25 mm |
Profile view width max |
130 mm |
|
