HSM-6K-V

The Advantages

Steel insertion into the transom weld possible during the welding process
Discharge device in running direction or laterally
Integration into a welding-plastering line possible
HFL welding (wooden window look)
Sash glass seal and frame stop seal (stamping or blade limit only on the outer 4 heads)
Front door welding open U or with threshold mounting
Overlength welding

V-welding process
With 4 angle and 2 transom welding heads
On-screen dialogue system under Windows

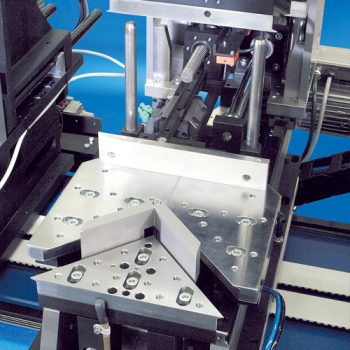

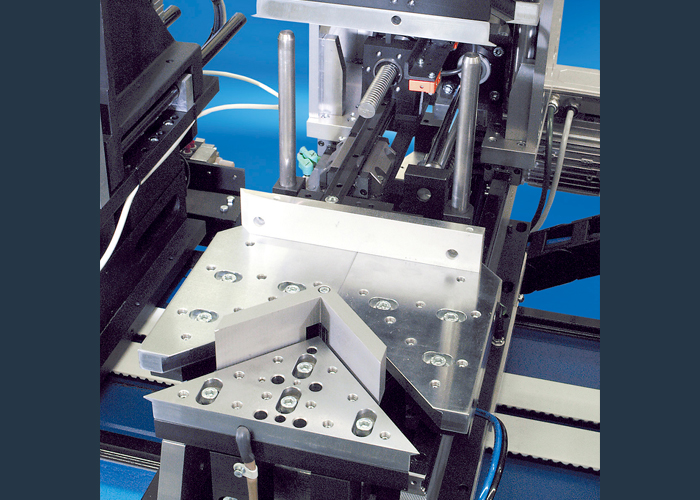

Diagonal or parallel joining method on the angle welding heads
Data management via database
Heated weld bead limiter (optional)
Welding parameters individually programmable
Welding bead limit 2mm (0.2 to 1 mm optional)
Welding of 2 elements in parallel possible
Steel insertion into the transom weld possible during the welding process
Discharge device in running direction or laterally
Integration into a welding-plastering line possible
HFL welding (wooden window look)
Sash glass seal and frame stop seal (stamping or blade limit only on the outer 4 heads)
Front door welding open U or with threshold mounting
Overlength welding

Element size min	345 x 335 mm [WxH] (345 x 335 mm with profile width <85 mm)
Element size max	4,000 x 3,000 mm [WxH]
Profile depth min	45 mm
Profile depth max	120 mm (optional 180 mm)
Profile face width min	25 mm
Profile face width max	130 mm

Element size min	345 x 335 mm [WxH] (345 x 335 mm with profile width <85 mm)
Element size max	4,000 x 3,000 mm [WxH]
Profile depth min	45 mm
Profile depth max	120 mm (optional 180 mm)
Profile face width min	25 mm
Profile face width max	130 mm
